长 安 时 间 Changan Times
Project Data
GFA : 12,000㎡
Location : Xian , China
Architecuture Schematic Design : Yutaka Kawai , dodo
Architecuture Design Development : Zhang Hao , dodo , Xu chi
Interior Schematic Design : Sylvia Sun ,Jolie Zhu
Interior Design Development : Lily,Aping,Fanxing Zhang,Jolie Zhu
Photographer : 直译建筑
西安,现时的陕西省省会,彼时的千年古都——“长安”。
作为古丝绸之路的起点,历代都城的繁荣昌盛,带给这座城市深厚历史底蕴。长安时间,以城市之名承载古都今昔,以建筑之姿伴随古都迎向未来。
项目位于城市地标钟楼向南三公里处,为西安中轴龙脉“长安中路”与二环线的交汇枢纽。周边有长安大学、陕西省图书馆等文化教育设施,更紧邻西北第一商圈“小寨商圈”,拥有得天独厚的地理优势。
长安时间的前身是1955年建造的西安汽车机械学校,最早为砖混结构,后西侧扩建成框架结构,东侧扩建后仍为砖混结构。改造前此处为五层楼的U型多租户建筑,改造后则为可容纳商业及教育商户和办公室的商业综合体。
从历史古城中轴线上的故事出发,将古都城墙符号融入设计,长安时间的东西两侧以兼具商业和人文价值的设计理念结合市景,使西安的历史传承和建筑可持续价值尽现眼前,创造了美好的古都新篇。
在西安,古时城墙仍屹立在城市中央,这样一种新旧对比,正是古都独特的魅力所在。因此,长安时间的设计初衷便是纳入西安城墙元素,以尊重城市历史积淀为基石,通过对城墙上一砖一瓦的精细测量与研究实践,为西安打造出了新时代的标志性地标。
项目西侧面朝车水马龙的市井大街,我们以大尺度的建筑外立面回应了城市的恢弘气势;而东侧则因面向长安大学校址,为对应丰富的人文元素与绿地交织,从而设计了一块向行人开放的立体商业区,并透过城墙前后(里外)组合展现了整体空间结构。
西侧:面朝长安路:建筑外立面大面积与西安城墙主题结合,上层模拟城墙砖块系统,以三种不同的块状铝赋予建筑独特个性;下层门店部分则采用了挑高幕墙,进而提升门店内部的可见度。长安时间外立面上下层的组合,使建筑外观看似古城墙漂浮在现代帷幕上,兼具美观与象征意义。
东侧:面朝长安大学校址:东侧因面向绿地和校园,使用了一种类似于梯田的设计,通过精细分割空间,创造了与长安路侧相对比的人性化空间。设计里使每家商户都拥有一个开放的露台,使往来的人们可恣意穿梭城市与绿意之间。
物料:考虑到项目位于开发区,建材选用了穿孔铝板和玻璃,打造西安的城市印象。项目内部则大量融入传统元素,以墙砖的使用与外立面设计相互呼应。此外,长安路一侧以白色为主色调,长安大学一侧则以与之对比的大地色调为主。
LED面板:在长安路一侧可见一块墙砖元素拼接的巨型异形LED灯板,灯板屏幕本身亦采用凹凸的城墙肌理设计,将高科技作为建筑外立面的一部分,使其可展露更丰富且多元的表情。我们同时设计了对应LED形态的视频进行投影展示,以灯光映射衬出古都的时尚,将建筑融合进时代的潮流。
随着整个建筑行业往“可持续”方向发展的风潮,利用城市现有建筑进行改造是全球趋势。西安城区规模宏大,中心主干道的范畴直线距离约20公里,其中建筑跨越千年,如今在同一个时间维度与人们共存。基于城市规模及地标建筑象征意义的关系,长安时间集结城市精华,正面古今交汇的象征意义令人印象深刻,背面则提供了丰富的步行空间,创造了建筑的双重可持续性,为西安提供了崭新的非凡体验。
在历史名城西安,长安时间将不止是城市的新标志建筑,承载着古都象征意义,它将成为区域的活化剂,将城市的古韵与新潮深度糅合。
Xi'an, now the capital of Shaanxi Province, was then called "Chang'an" as the capital of several dynasties since thousands years ago.
As the starting point of the ancient Silk Road, the prosperity over the ages has brought the city a deep historical heritage. Chang'an Times, carries the ancient capital in the present and the past in the name of the city, and accompanies the ancient capital to the future with the posture of architecture.

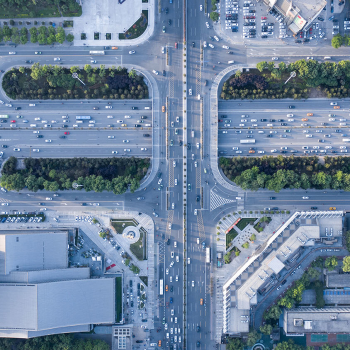

The project is located three kilometers away from Bell Tower, at the intersection of Chang'an Middle Road, the central axis of Xi'an, and the Second Ring Road. It is surrounded by cultural and educational facilities such as Chang'an University and Shaanxi Provincial Library, and is also close to the Xiaozhai business district, the number one business district in Northwest China, which is a unique geographical advantage.

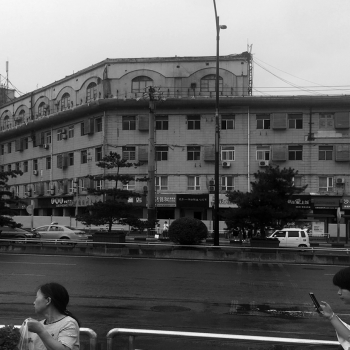

Chang'an Times used to be Xi'an Automobile and Machinery School. It was built in 1955 in a brick and mortar structure. Later after expansion, the west side was in frame structure, while the east side was still in brick and mortar structure. Before the renovation, it was a five-story U-shaped multi-tenant building, and now it’s became a commercial complex for commercial and educational stores and offices.
Starting from the history of the old city’s central axis, we integrated the symbol of the ancient city wall into our design, and made the east and west sides of Chang'an Times fit the city view in different ways, with a design concept that has combined commercial and humanistic values, so that the historical heritage of Xi'an and the architectural sustainability values are in full view, creating a beautiful new chapter of the ancient city.
In Xi'an, the ancient city walls are now still standing in the middle of the city, the contrast between the old and the new is the unique charm of this ancient capital. Therefore, the core of our design is to create an iconic landmark of the new era of Xi’an, which incorporates the elements of Xi'an city wall and respect for the city's history, by measurement and research of the bricks on the city wall.
On the west side of the project facing the city axis, we designed a large-scale facade responding to the grandeur of the city; while on the east side facing the Chang'an University, we designed a three-dimensional commercial area open to pedestrians in order to correspond to the rich humanistic elements interwoven with the green space, and show the overall spatial structure through the combination of the front and back (inside and outside) of the city wall.

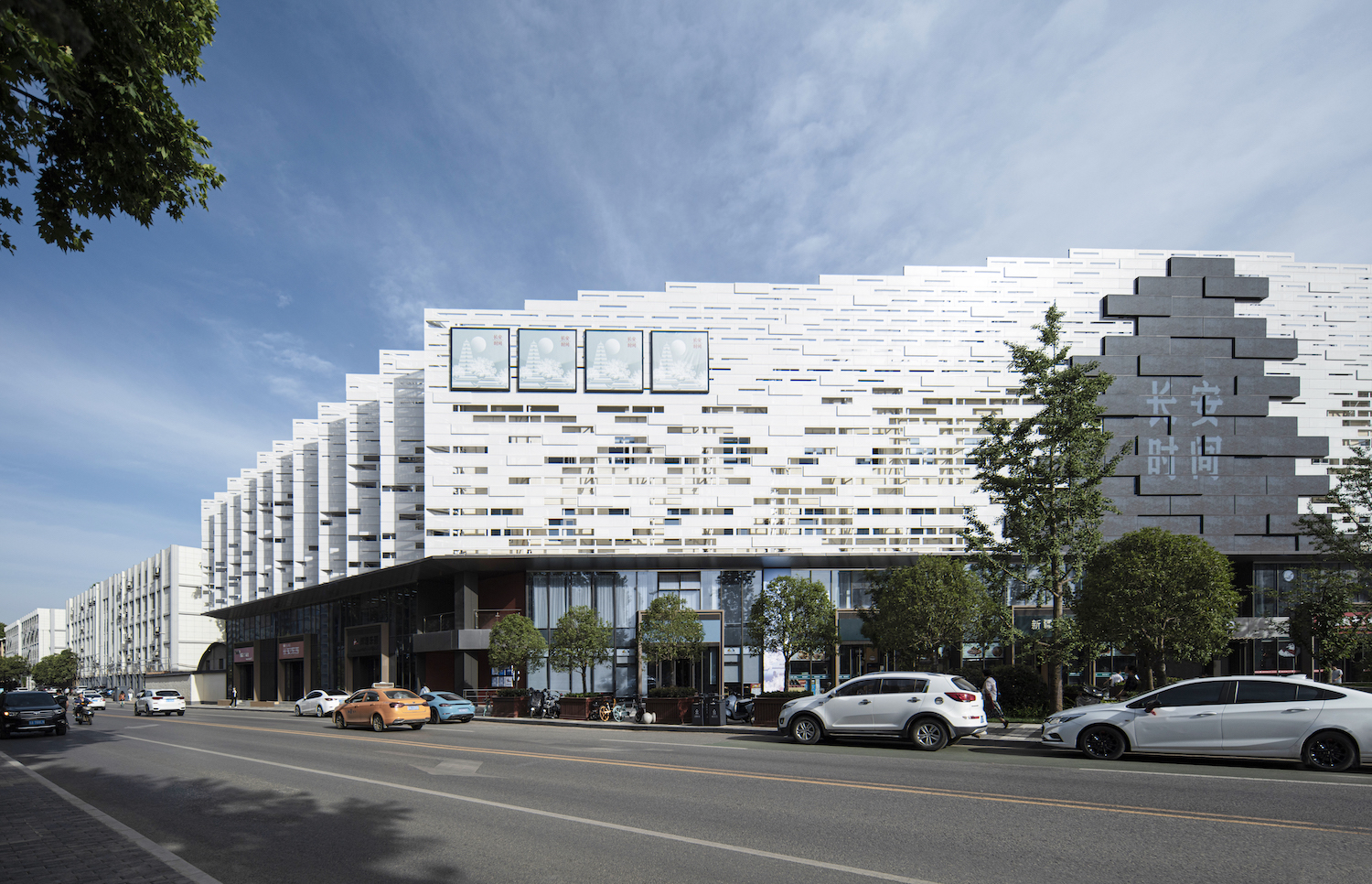

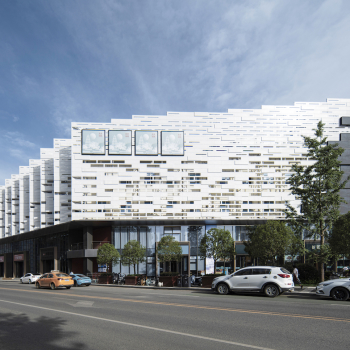

The west side: Facing Chang'an Road: The building facade is in Xi'an City Wall theme. The upper level simulates the brick system of the city wall by using three different block shapes of aluminum, which brings the building its own character; the lower store section features a high curtain wall, which enhances the visibility of the stores’ interior. With the combination of the different designs of the facade, it looks like that the great ancient city wall is floating there, which is both beautiful and symbolic.
The east side: Facing Chang'an University: On the east side facing much green space and the campus, we designed a terrace-field-like commercial area by detailed calculation and division and made it more user-friendly. Each store owns an open terrace so that people can travel between the city facility and the nature at will
Materials: Considering the project's location in the development zone, perforated aluminium panels and glass are adopted to create an urban impression of Xi'an. Meanwhile, inside the project, where traditional elements are much used, we also use wall tiles to echo the design of west facade. In addition, the dominant color of the Chang'an Road side is white, while of the Chang'an University side is earth tones in contrast.
LED Panel: On the facade facing Chang'an Road, we designed a special-shaped LED screen spliced by many smaller panels in brick shape. The panel screen is designed with a concave and convex city wall texture, allowing itself to own a richer and more diverse expression. We also designed a video projection display corresponding to the LED form, using the light to show the modernism of the ancient capital and integrate the building into the trend of the times.
As sustainability is becoming more and more valued nowadays, there is a global trend to reuse existing buildings in cities. Xi'an's urban area is large in scale, with the central main road of about 20 kilometers, in which buildings spanning thousands of years and now coexist with people at the same time. Based on the relationship between the scale of the city and the symbolism of the landmark, Chang'an Times gathers the charm of the city, with an impressive symbolism of both the ancient and the modern on the front side, and a rich walkable space on the back side, creating a double sustainability of the architecture and providing a new and extraordinary experience for Xi'an.
In the well-known historic city of Xi'an, Chang'an Times will be more than a new symbolic building of the city, it will become the activator of the region, blending the ancient charm with the new trend of the city.
陝西省の省都であり、“千年の古都”である西安。古くは「長安」と呼ばれ、諸王朝の都、シルクロードの東の起点として栄えた。その呼称を冠した「長安時間」は、西安のメインストリート「長安路」と環状線「二環南路」の交差点の一角にあり、広大な敷地を有する。南側の開発地区と景観保護区域の境界に位置し、周辺には長安大学や陝西省図書館などの文化教育施設が集中している。1955年に自動車製造学校(西安汽车机械学校)として建設された従来の建築は壁式構造、後に西側は柱梁のラーメン構造で増築され、東側はレンガ造りのバラックが既存建築に貼り付いており、改造前は5階建てのシンボリックな印象を持つコの字型の雑居ビルだった。これらの機能を一新し、商業と教育関連のテナントやオフィスが入る商業コンプレックスとする計画に伴い、世界の歴史都市の中心軸とそこに計画されたシンボルに関する研究を行い、巨大なスケールの都市における建物のシンボル性を設計に反映させた。
西安には、古都のシンボルである秦王朝時代の巨大な城壁が完全な形で現存する。プロジェクトでは、城壁のレンガの寸法体系や比率を綿密にトレースし、都市に残る記憶を尊重しながらデザインに取り込むことで新しい都市のシンボルとしてのランドマークを目指した。また、交通量の多い西面は、巨大な都市のスケールとの関係性を設計へと還元させるため、シンボリックな印象を与える横方向の広がりを持たせたファサードを採用した。一方、長安大学の敷地に面した東面は緑が多く、ヒューマンスケールな要素が多いため、歩行者に開かれた立体的な商業街を設計した。城壁の表と裏(内と外)のような構成を踏襲することにより、空間的構造を表現した。
西 長安路側(西側)
城壁をモチーフに巨大な面を連続させることでファサードを構成し、3種類のブロック状のアルミユニットを用いてファサードに表情を与え、城壁のレンガを表現した。路面店となる下層部は、店舗内部の視認性を高めるため、高さのあるカーテンウォールを採用。上下の構成、面の連続によって出来た巨大なヴォリュームが透明なガラスに支えられ、浮遊しているかのような外観を創り上げた。
長安大学側(東側)
長安大学側は、小さな箱が積まれた立体的なテラスの集合のようなデザインを採用。空間が細かく分節されることにより、表面とは対照的なヒューマンスケールな空間を生み出している。また、各店舗にはオープンテラスを設け、周辺の緑を楽しめるよう配慮した。
材料
開発地区に位置する点を考慮し、都会的な印象を与えるパンチングメタルやガラスを採用。内装にはレンガを多用し、伝統的な要素を取り入れている。また、長安路側は白を基調としたモノトーン、長安大学側は対比的なアースカラーを基調とした。
LEDパネル
長安路側には、レンガをモチーフとした巨大な変形LEDを設置。ブロック状のLEDパネルには凹凸があり、映し出される情報に表情を与えてくれる。さらに映像コンテンツも社内で計画し、LEDを使ったプロジェクションマッピングを試みた。静止した建築の表面と平面的なLEDに変化をもたらす変形LEDにより、ファサードデザインとテクノロジーの融合を提案した。
建設業界全体がスクラップ・アンド・ビルドからサスティナビリティを目指す考え方へと変化しているため、都市における既存の建築のリユースは社会的課題となっている。西安は、中軸を成す大通りの直線距離が約20kmという巨大なスケールを持つ。都市のスケールとランドマークとなる建物のシンボル性との関連性を踏まえ、表面は印象的かつシンボリックに、裏面には豊かな歩行空間という二重のサスティナビリティを担保し、新たな非日常が体験できる空間を目指した。西安という歴史都市の中で、「長安時間」が都市の新たなシンボルとして地域のさらなる活性剤となることを期待している。
